HB HBR HE HD-Planetary Gearbox

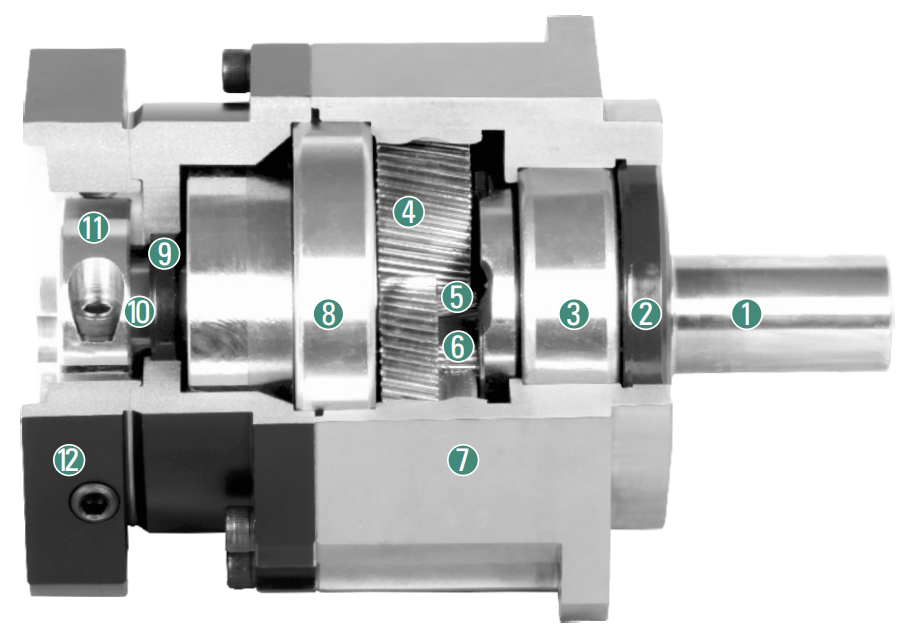

▞ N6˙G9F=9G˙;95F6CL Sectional View
|
①Output shaft ②Oil seal ③Output shaft front bearing ④Planetary gear ⑤Solar wheel ⑥Full needle bearing ⑦Front cover ⑧Output shaft rear bearing ⑨Oil seal ⑩Coupling ⑪Lock ring ⑫Rear cover |
 |

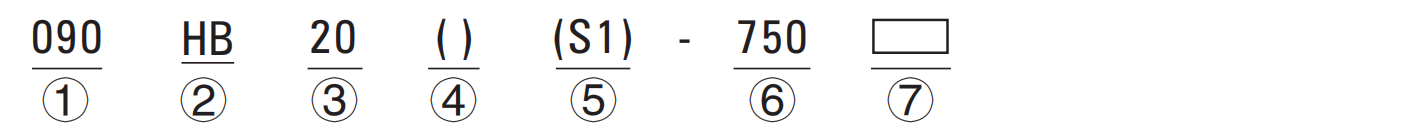

▞ Type And Model Number Explanation
| HB Reducers | Servo Motor | ||
 |
|||
| ① | Gearbox frame size:090,(P04) | ||
| ② | Gearbox series code:HB | ||
| ③ | Gear ratio:20,(P04) | ||
| ④ | Precision (See P04) Precision type P1,high pricision type P0 Output shaft load is±5%of allowable output torque |
||
| ⑤ | Input shaft type S1:Locking with locking ring(0mission) (Can be used regardless whether the motor has a keyway,but"D"type is not applicable) S2:Locking with keyway (lnput shaft with key) A:Other adapters (Please contact our company) |
||
| ⑥ | Applicable servo motor power(W) | ||
| ⑦ | Servo motor model | ||
