AE AEW AF AFW HBF HBFW-Planetary Gearbox

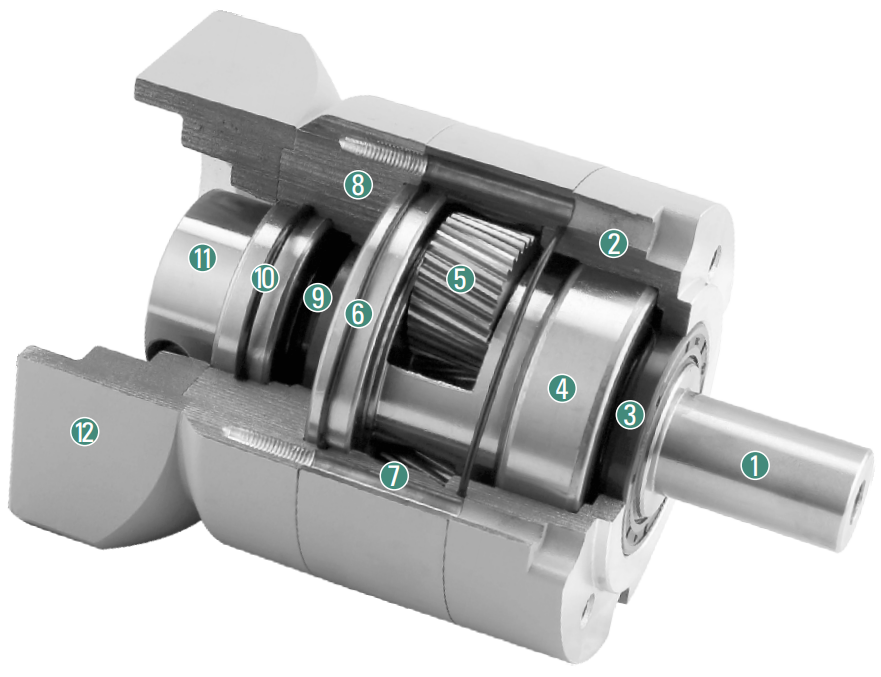

▞ AE/AF SERIES GEAR BOX Sectional drawing
|
①Output shaft ②Front cover ③Oil seal ④Output shaft front bearing ⑤Planetary gear ⑥Output shaft rear bearing ⑦Front cover ⑧Rear cover ⑨Solar wheel ⑩Coupling ⑪Coupling ⑫Rear cover |
 |

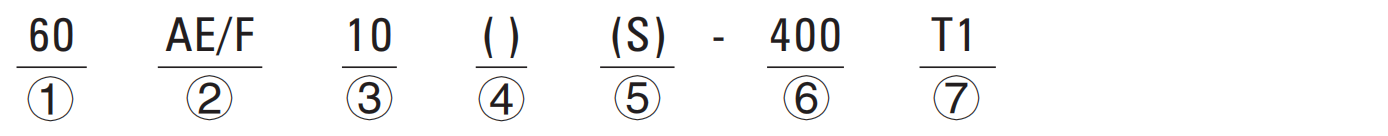

▞ Type and model number
| AE/F Reducers | Servo motor | |||
 |
||||
| ① | Gear head frame size:060 | |||
| ② | Gear head series code: AE:Round mounting flange series AF:Square mounting flange series |
|||
| ③ | Gear ratio:Single stage 10 | |||
| ④ | Accuracy Output shaft load value at±3%of allowable output torque |
Cabin seat | Stage | Standard (omitted) |
| 60AE/F | 1 | 7 | ||
| 2 | 10 | |||
| 90AE/F | 1 2 |
7 10 |
||
| 120AE/F | 1 | 7 | ||
| 2 | 10 | |||
| 160AE/F | 1 | 7 | ||
| 2 | 10 | |||
| ⑤ | Input shaft type S:Overall locking(0mitted)(Can be used regardless of whether the motor has a keyway) S1:Locking with locking ring(Can be used regardless of whether the motor has a keyway) S2:Lock with keyway(Input shaft with key) K:With keyway A:Other adapters (Please contact us) |
|||
| ⑥ | Applicable servo motor power(W) | |||
| ⑦ | Corresponding dimension table of input flange and servo motor() | |||
