HYE HYWE HYS-Planetary Gearbox

① Output shaft

② Bearing for the output shaft

③ Internalgear

④ Planetary gear

⑤ Sunwheel

⑥ Bearing for the sunwheel

⑦ Appropriate motor flange

⑧ Precision clamping system

⑨ Mountinghole

Contact Now Download To PDF

Product Detail

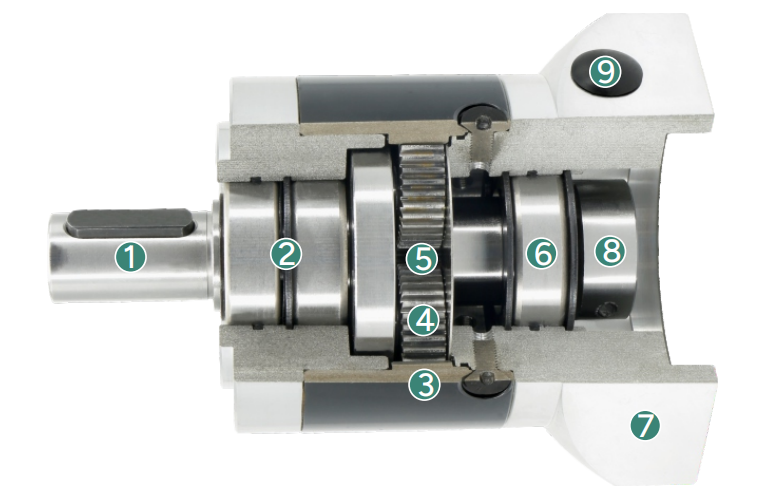

▞ Sectional Drawing

① Output shaft

② Bearing for the output shaft

③ Internalgear

④ Planetary gear

⑤ Sunwheel

⑥ Bearing for the sunwheel

⑦ Appropriate motor flange

⑧ Precision clamping system

⑨ Mountinghole

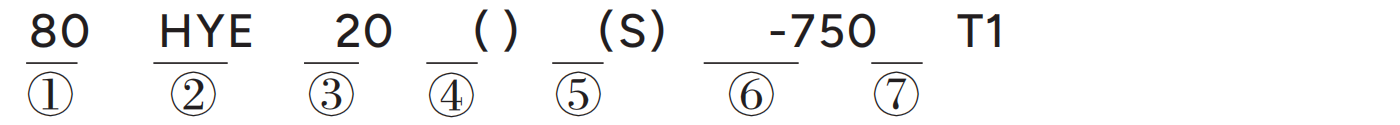

▞ Type And Model Number

HY Series Gear Head		Servo Motor

①	Gear head frame size:80
②	Gear head series code: HYE: Roud mounting flange series HYWE: Right angle input roud mounting flange series HYF: Square mounting flange series HYWF: Right angle input square mounting flange series HYS: Hight stiffness series
③	Gear Ratio : Single Stage 3,4,5,8,10 Two Stage 9,12,15,16,20,25,32,40,64 Three Stage 60,80,100,120,160,200,256,320,512
④	Amount of backlash Precision (The load of output shaft is ±3% of allowable output torque)	Reducer Type No.	Stage	Standard Type
		40HYE/F	1	12分arc-min
			2	15分arc-min
			3	18分arc-min
		60HYE/F 80HYE/F 120HYE/F 160HYE/F	1	8分arc-min
			2	12分arc-min
			3	15分arc-min
		115HYS 142HYS 190HYS	1	8分arc-min
			2	12分arc-min
		60HYWE/F	1	30分arc-min
			2	35分arc-min
			3	40分arc-min
		80HYWE/F 120HYWE/F 160HYWE/F	1	25分arc-min
			2	30分arc-min
			3	35分arc-min
⑤	Input shaft type S: Over locking (Omission) (Can use it whatever motor shaft has keyway or not) S1: Locking with locking ring (Can use it whatever motor shaft has keyway or not) S2: Locking with keyway (Input shaft with key) K: With keyway A: Other type (Please contact with us)
⑥	Applicable servo motor power (W)
⑦	Input flange and servo motor matching table (P15)
