HT-Planetary Gearbox

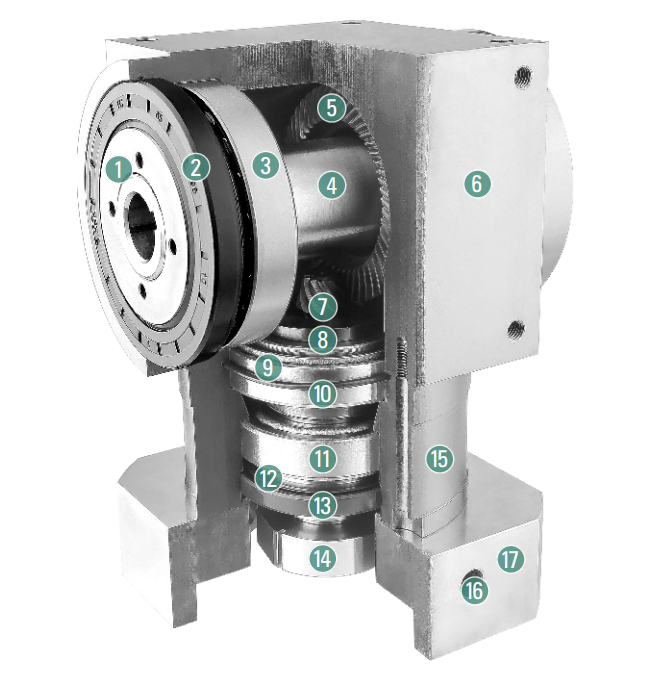

▞ HPG/HYPG SERIES GEAR BOX Sectional Drawing
|
① Adjustment nut ② Oil seal ③ Bearing ④ Output shaft ⑤ Output bevel gear ⑥ Output box ⑦ Input bevel gear ⑧ Input shaft ⑨ Bearing ⑩ O-rings |
 |

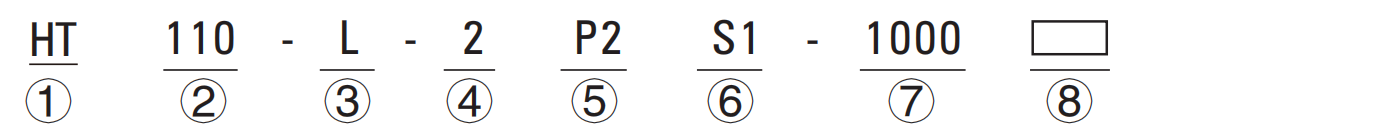

▞ Type And Model Number
| HT Reducers | Servo motor | ||
 |
|||
| ① | Gear head series code:HT | ||
| ② | Gearbox size:075,090,110,140 | ||
| ③ | Gearbox:L,L1,R1,H,FH,FL,FL1,FR1 | ||
| ④ | Gear ratio:1,1.5,2,3,4,5,7,10,15,20,25,35,50 | ||
| ⑤ | Amount of backlash:Standard type P2(Omission)Please refer to P06 for details Precision (The load of output shaft is±2%of allowable output torque) |
||
| ⑥ | Input shaft type: S1:Locking with locking ring (0mission) (Regardless whether the motor with keyway can use it.But "D"cut can't use) S2:Locking with keyway (lnput shaft with key) A:Other type(Please contact with us) |
||
| ⑦ | Applicable servo motor power (W) | ||
| ⑧ | Model of servo motor | ||
