HPG HRS AGV-Planetary Gearbox

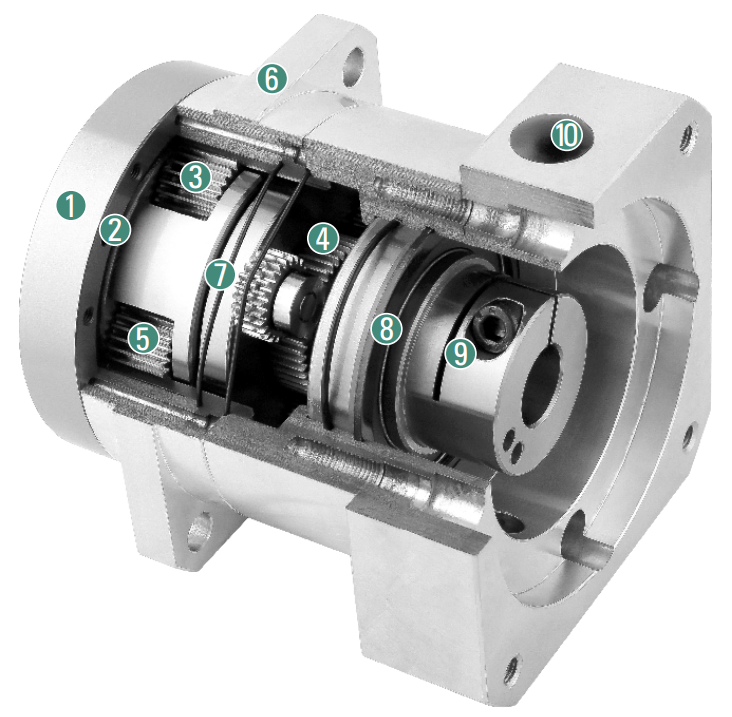

▞ HPG/HYPG SERIES GEAR BOX Sectional Drawing
|
①Output shaft ②Output shaft front bearing ③Planetary gear ④Sun Gear ⑤Full needle bearing ⑥Front cover ⑦Output shaft rear bearing ⑧Oil seal ⑨Coupling ⑩Rear cover |
 |

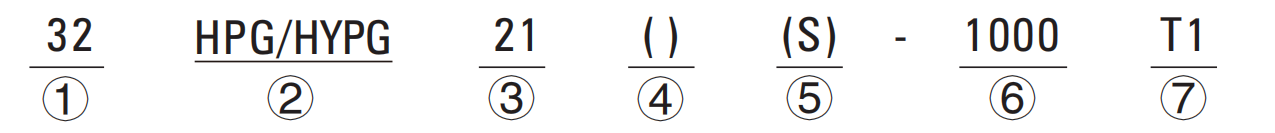

▞ Type And Model Number
| HPG/HYPG Reducers | Servo Motor | ||||
 |
|||||
| ① | ①Gear head frame size:20,32,50 | ||||
| ② | Gear head series code:HPG:High torque type HYPG:Standard torque type | ||||
| ③ | Gear ratio Single stage:5 Two stages:11,15,21,33,45 |
||||
| ④ | Backlash Output load is±3%of the rated output torque |
Reducer Type No | Stage | Standard Type | Standard Type |
| 20ZPG | 1 | 3 arc-min | 1 arc-min | ||
| 2 | 5 arc-min | 3 arc-min | |||
| 32ZPG | 1 | 3 arc-min | 1 arc-min | ||
| 2 | 5 arc-min | 3 arc-min | |||
| 50ZPG | 1 | 3 arc-min | 1 arc-min | ||
| 2 | 5 arc-min | 3 arc-min | |||
| ⑤ | Input shaft type S: Overall Locking (Omission)(Regardless whether the motor with keyway can use it) S1: Locking with locking ring (Omission)(Regardless whether the motor with keyway can use it) S2: Locking with keyway (Input shaft with key) A: Other type (Please contact with us) |
||||
| ⑥ | Applicable servo motor power (W) | ||||
| ⑦ | Model of servo motor | ||||
