HYR-Planetary Gearbox

①Output shaft

②Seal for the output shaft

③Bearing for the output shaft

④Planetary gear

⑤Front cover

⑥Bearing for the output shaft

⑦Seal for the input shaft

⑧Bearing for the input shaft

⑨Precision clamping system
⑩Rear cover

Contact Now Download To PDF

Product Detail

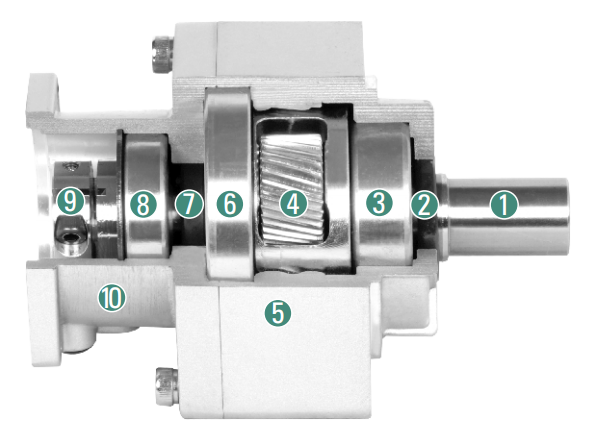

▞ HYR REDUCTION RATIO &TYPE NUMBER Sectional Drawing

①Output shaft

②Seal for the output shaft

③Bearing for the output shaft

④Planetary gear

⑤Front cover

⑥Bearing for the output shaft

⑦Seal for the input shaft

⑧Bearing for the input shaft

⑨Precision clamping system
⑩Rear cover

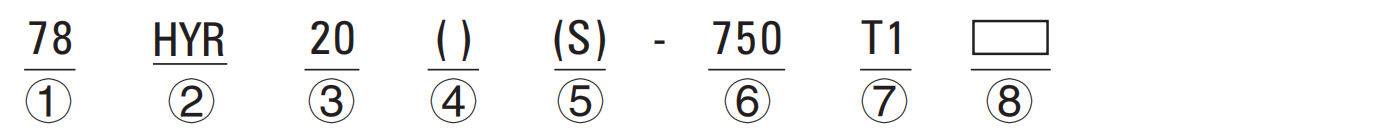

▞ Type And Model Number

HYR Reducers		Servo Motor

①	Gear head frame size:HYR:52,78,98,125
②	Gear head series code:HYR:Oblique tooth precision
③	Gear Ratio:HYR:Single Stage 3,5,7,9,10;Two Stages 15,20,25,35,45,81
④	Amount of backlash	Reducer Type No.	Stage	Standard Type	Low-blacklash Type	High Precision Type
		52HYR	1	12arc-min	10arc-min	3arc-min
		52HYR	2	15arc-min	12arc-min	5arc-min
		78HYR	1	8arc-min	5arc-min	3arc-min
		78HYR	2	12arc-min	8arc-min	5arc-min
		98HYR	1	8arc-min	5arc-min	3arc-min
		98HYR	2	12arc-min	8arc-min	5arc-min
		125HYR	1	8arc-min	5arc-min	3arc-min
		125HYR	2	12arc-min	8arc-min	5arc-min
⑤	nput shaft type S:Overall locking(Omission)(regardless whether the motor with keyway can use it.But D Cut can't use) S1:Locking with locking ring(regardless whether the motor with keyway can use it.But DCut cantuse) S2:Locking with keyway (input shaft with key) K:With keyway A:0ther type (please contact with us)
⑥	Applicable servo motor power (W)
⑦	Manufacturer name of servo motor(P33)
⑧	Model of servo motor
